Private Residential
 Vertical Platform Lift
 Specifications

  • ADA Compliant when configured properly
  • Complies with ASME A18.1
  • Constructed of marine grade aluminum and stainless steel
  • 750 lb capacity
  • 1.5 HP stainless steel motor designed for outdoor use
  • Sealed aluminum gear box assembly
  • Aluminum cable winder
  • Dual stainless steel cables
  • 5'' x 3.5" structural marine grade aluminum I-beam
  • Aluminum non skid floor panels
  • Lexan glass panels
  • Dual independent brake control system
  • Heavy cast nylon travel wheels on stainless steel axles
  • Car includes bellow pan which prevents harm to structure under platform
  • Limit switches to control and stop automatically at upper landings with UL, CSA and CE approval
  • Interlock gate release with two seperate mechanical actions to indicate proper gate closure at all landings meeting ASME A17.1, ASME A18.1 with UL approval
  • Platform and landing controls with control buttons meeting UL, CSA and IEC approval
  • Dual pressure switches prevent cable damage in the event there is cable slick with UL and CSA approval
  • Travel cable UL approved, CSA Certified, NEC/CEC compliant
  • Control wiring UL and CSA approved / MSHA approved and RoHS complaint
  • Main control center 12" x 12" Carlon weather tight control box
  • Weather tight NPT fittings
  • Fascia System design built and custom fitted (available)
  • Engineered and designed for Coastal Environment
  • 5 year structural warranty / 1 year electrical warranty

  • Cost is less than a conventional elevator
  • Interior shaft is not required
  • Unlike cargo lifts, this lift is Code Compliant and designed for human transportation
  • Complies with ASME A18.1 when properly configured
  • Provides an alternative to handicap ramps
  • 2 and 3 story models are available
  • Lockout power switch prevents unauthorized usage
  • Designed/engineered to operate in the rugged coastal elements
  • Mechanical components are above base flood elevation
  • Minimal maintenance required
  • 750 lb lifting capacity
  • Aluminum and stainless steel structure (no iron or steel to rust)
  • Designed to withstand the elements
  • 1.5 HP Stainless steel motor designed for out door use
  • Weather proof controls
  • Limit switch for controlled stops
  • Stops at multiple landings
  • User friendly
  • Foundation Available if needed
  • Safety Rail Gate Included with gate lock out system
  • Aluminum Anti-skid flooring
  • Multiple RAL colors available
New !!!

CODE COMPLIANT

RESIDENTIAL
VERTICAL PLATFORM LIFT

Without the Need of Interior Elevator Shafts
or atrocious handicap ramps.
AS SEEN DISPLAYED at:
New Orleans Boat Show
 in the Super Dome

Gulf Coast
Yacht and Boat Show
Gulfport MS.

Woods and Water Show
Biloxi MS.

Louisiana Sportsman Show
Gonzales,LA.

Pontchartrain Home Show
Kenner, LA.

Baby Boomer
Expo Pontchtrain Center.

Louisiana Outdoor Expo,Lafayette,LA

Home Design Show

Parts / Service
>Fully Insured
>State Licensed
>Certified Welders
>Certified Welding Equipment

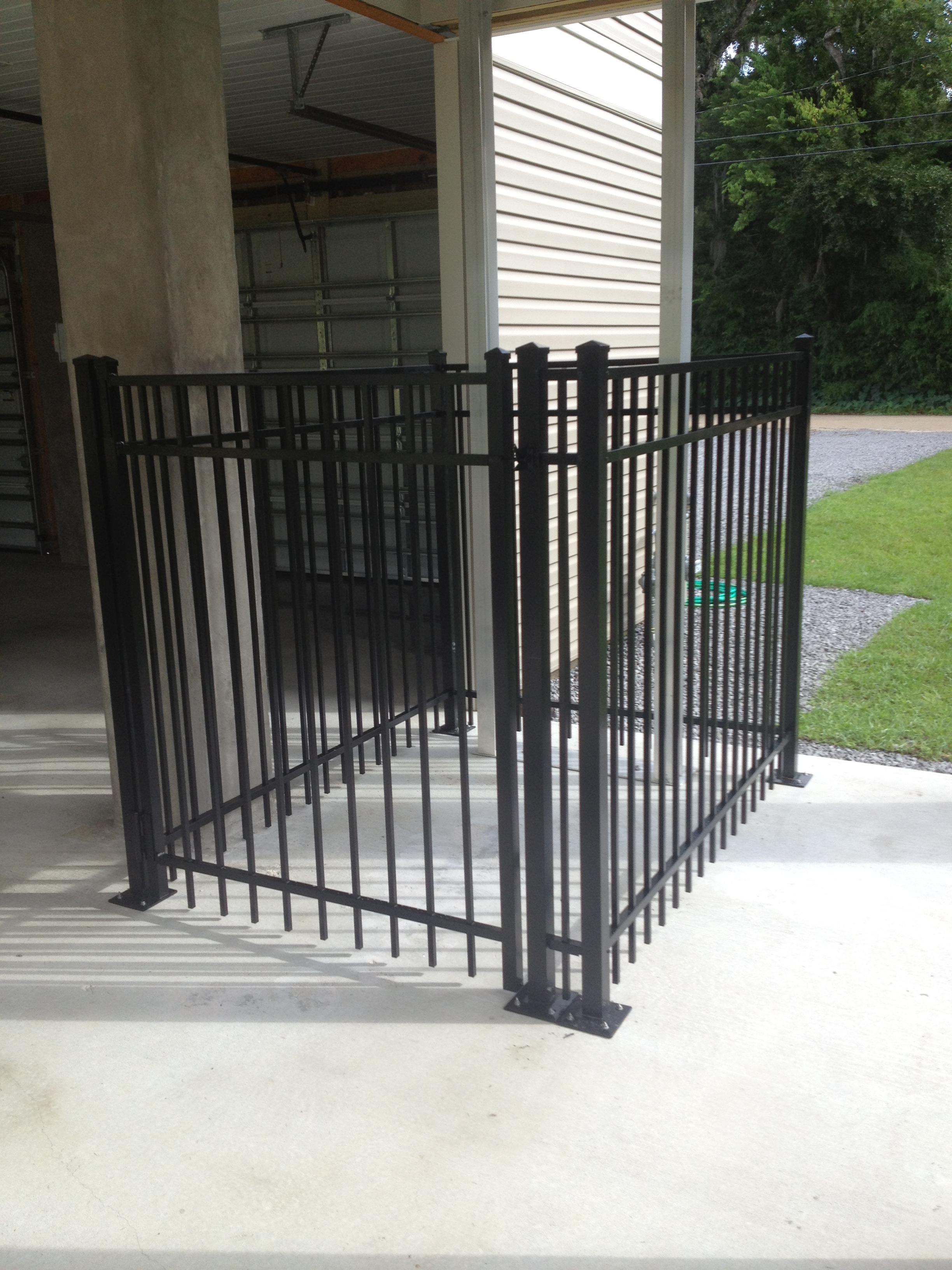

Custom Fabricating
Aluminum Railing

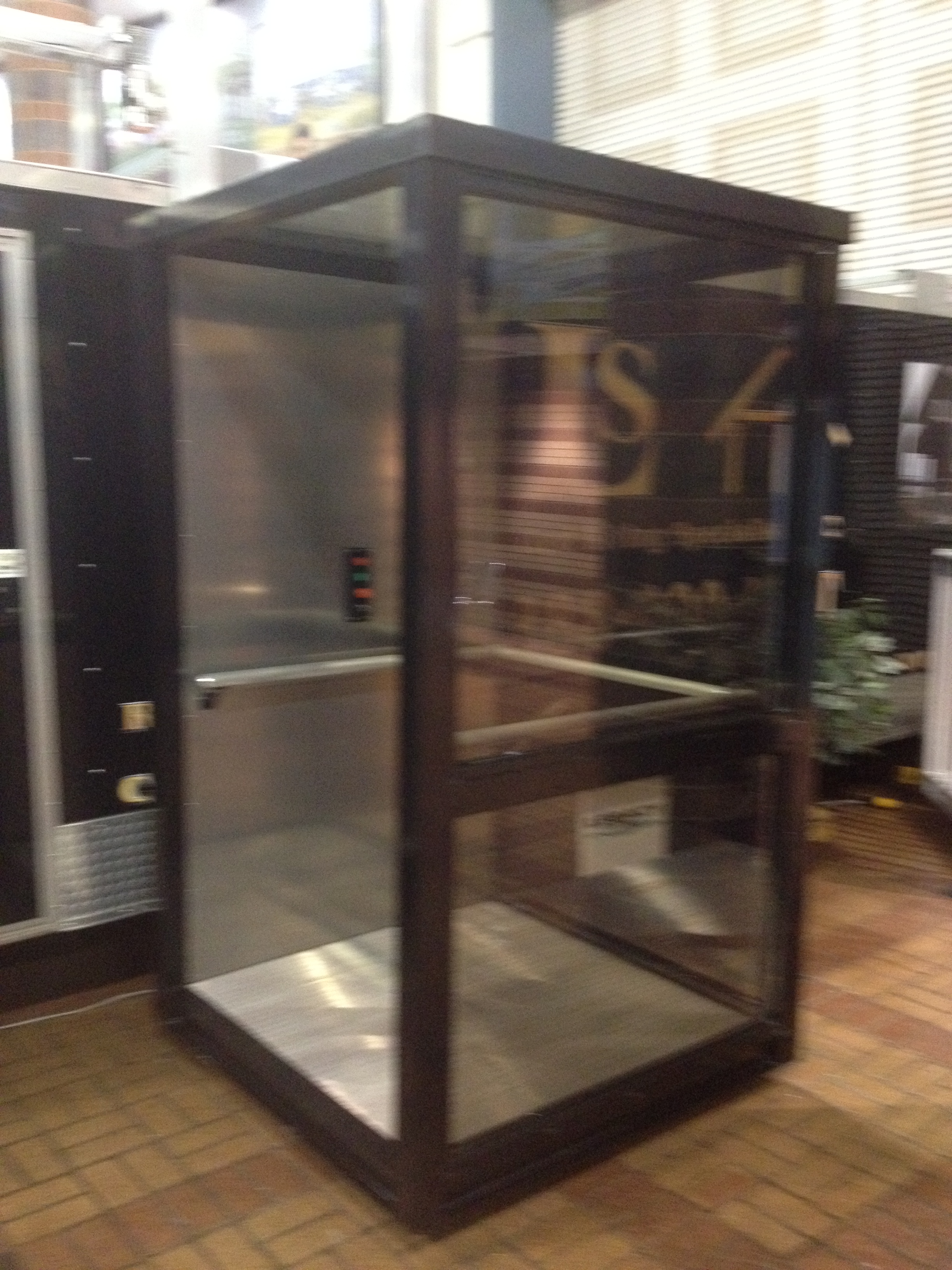

ELS LIFTS Unvailed this Vertical Platform Lift
Pontchartarian Home Show Febuary 2013!

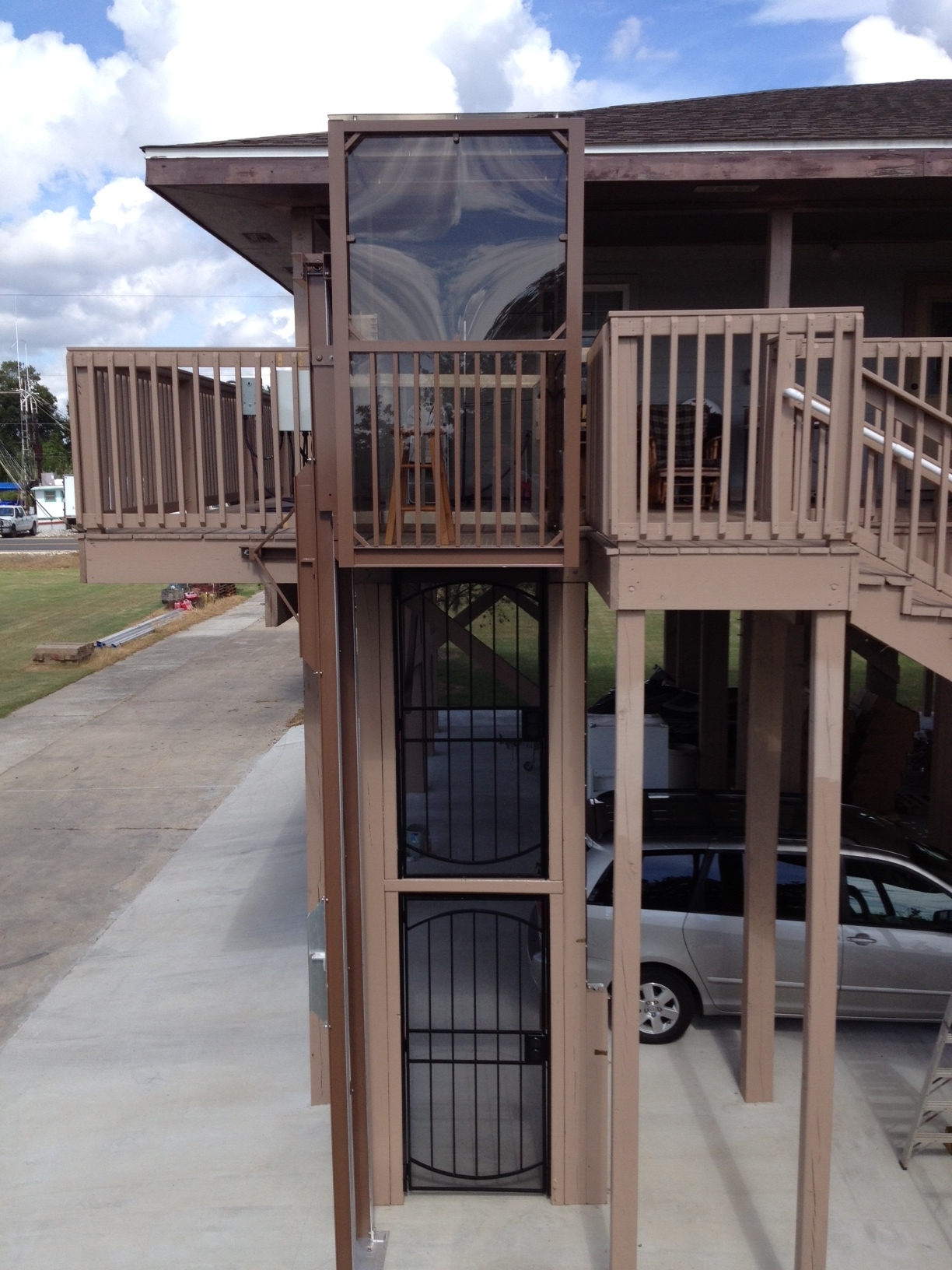

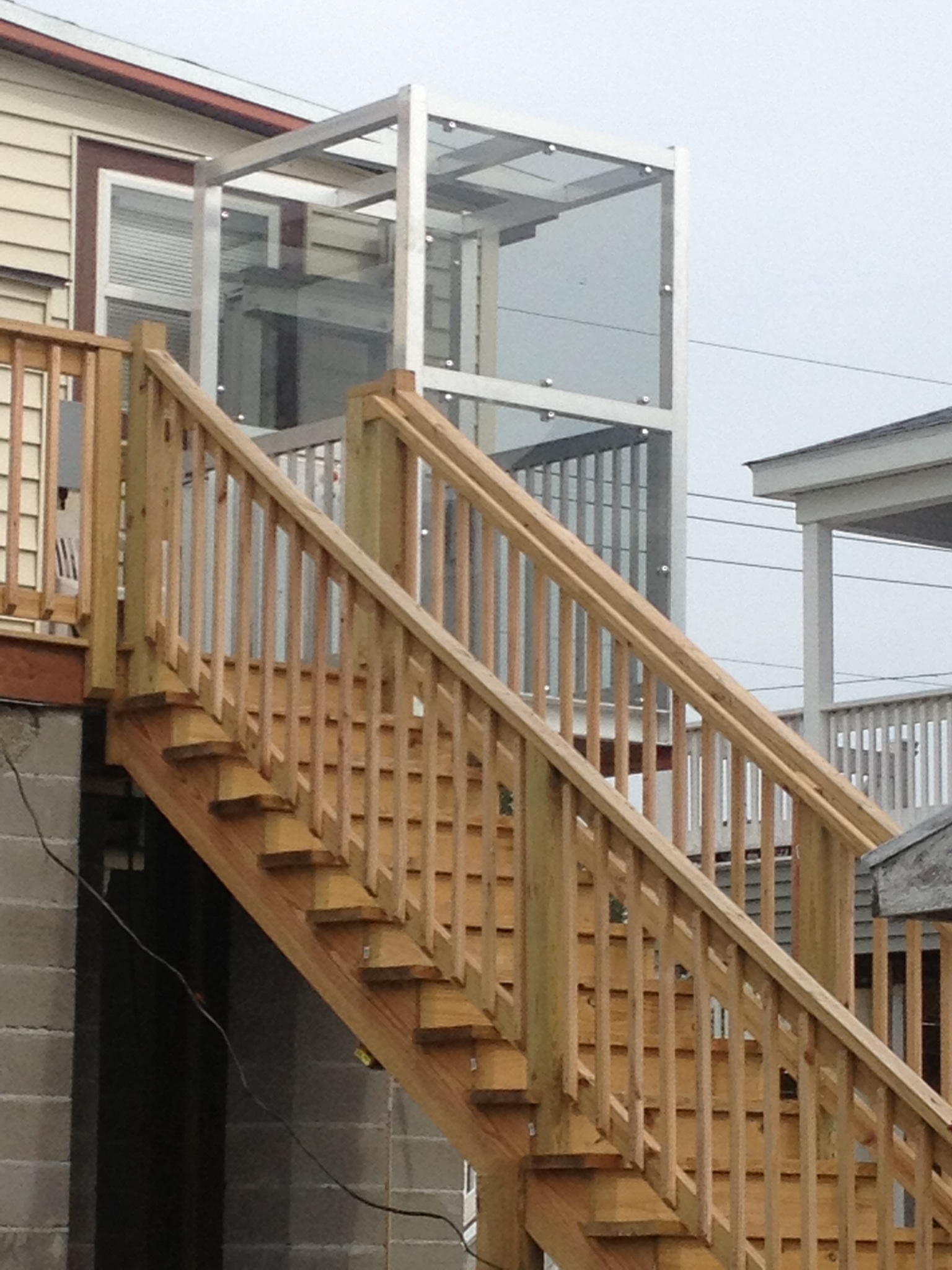

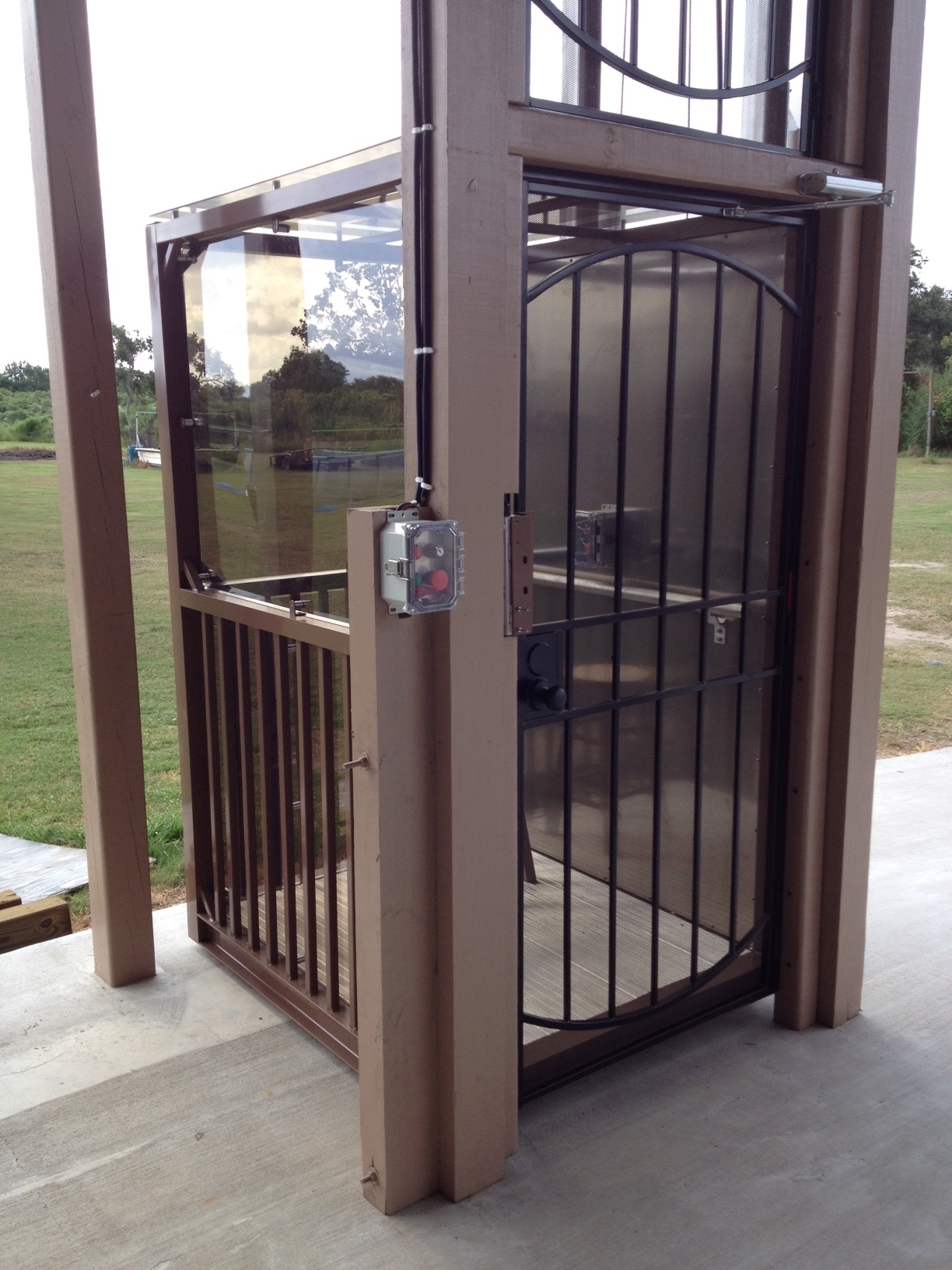

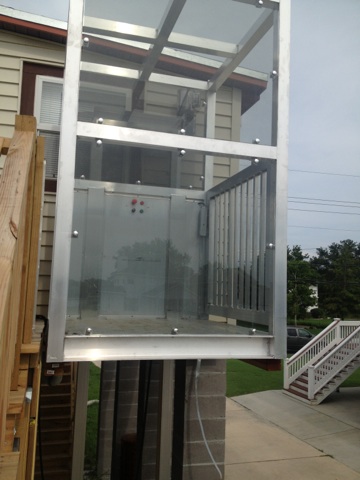

ELS Vertical Platform Lift
Dularge, Louisiana

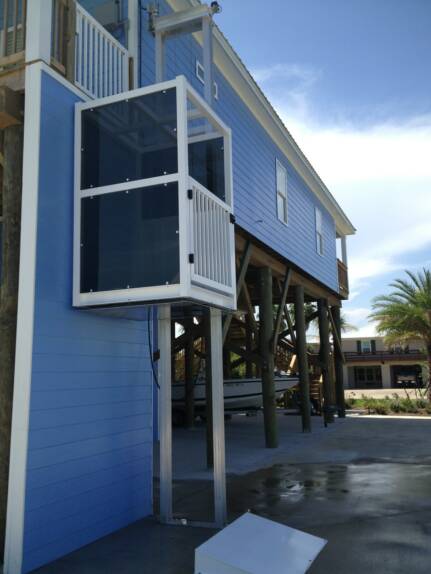

ELS Vertical Platform Lift
Grand Isle, Louisiana
ELS Vertical Platform Lift
Dulac, Louisiana
Installed to replace an inadequate cargo lift

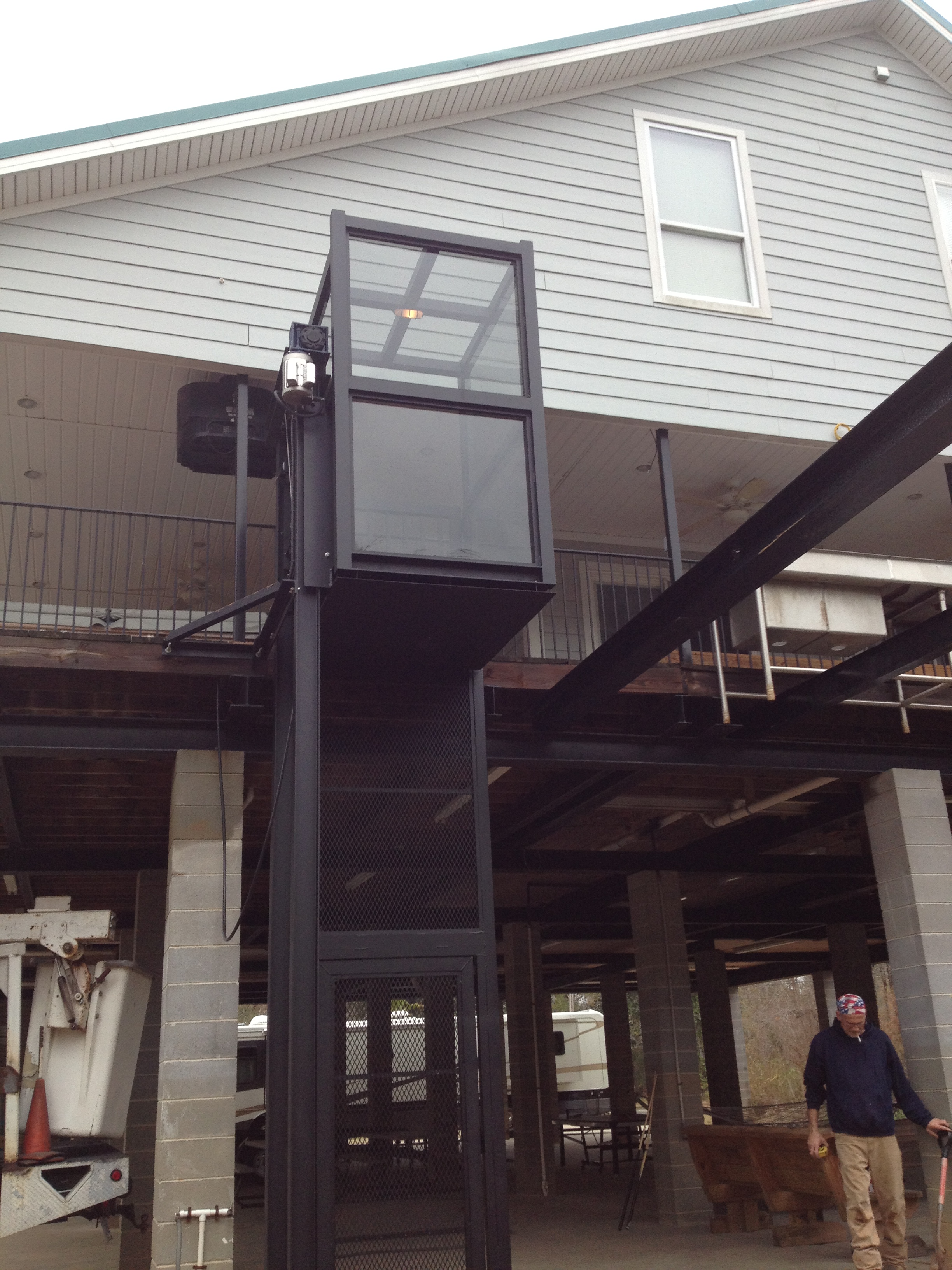

ELS Vertical Platform Lift
Bay St Louis MS.
Removed a new iron chain hoist system replacing it with a safe ELS LIFT

Includes
Brakes

Brakes
All ELS LIFTS
Include a Dual Brake System

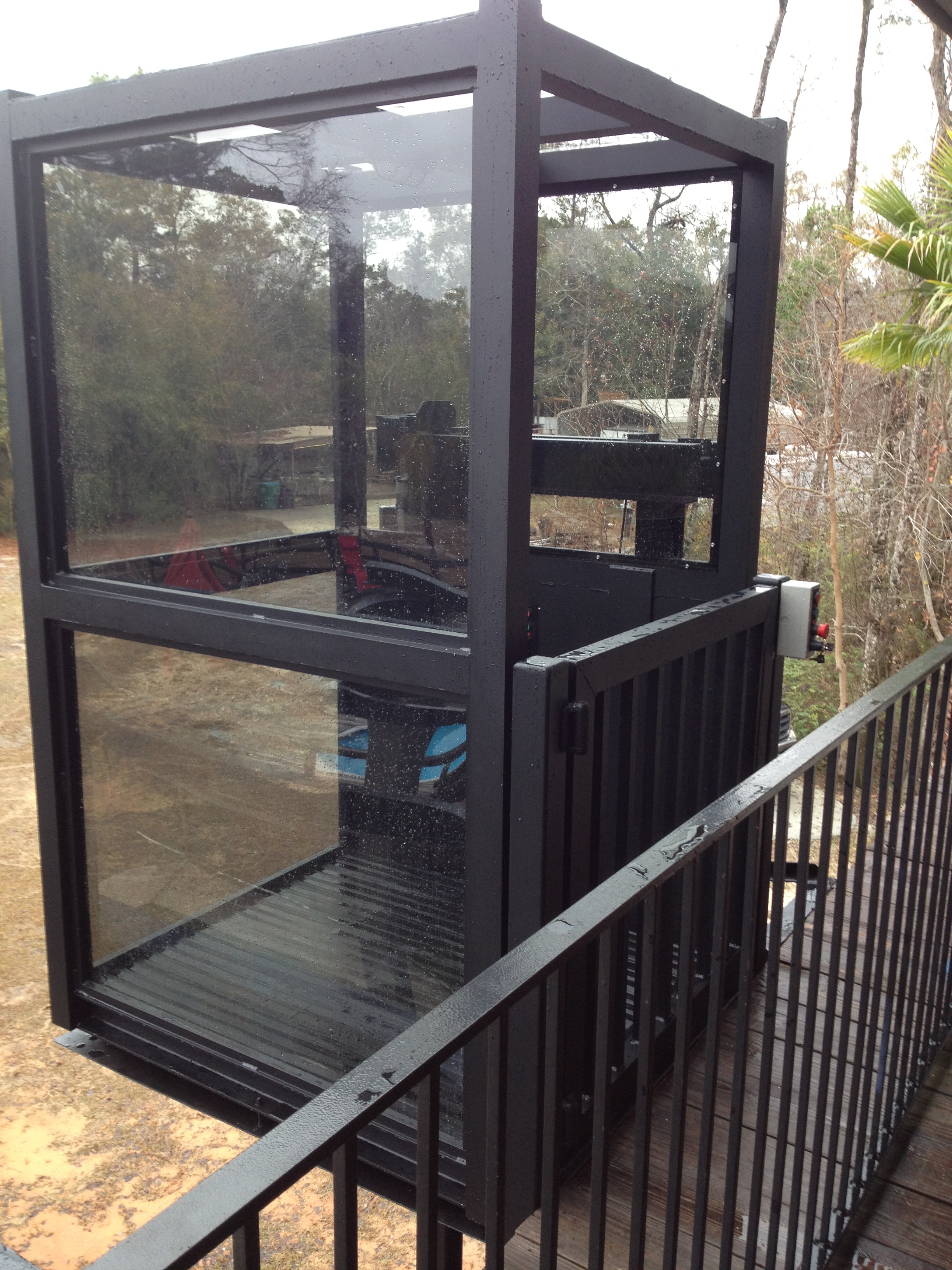

ELS Vertical Platform Lift
Lafitte, Louisiana

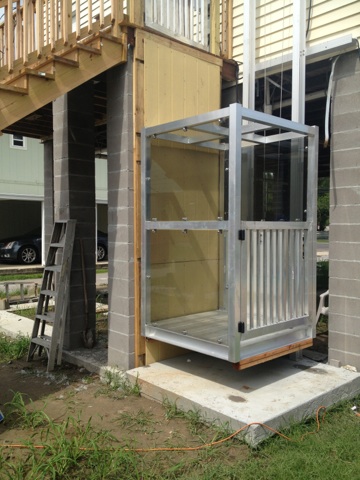

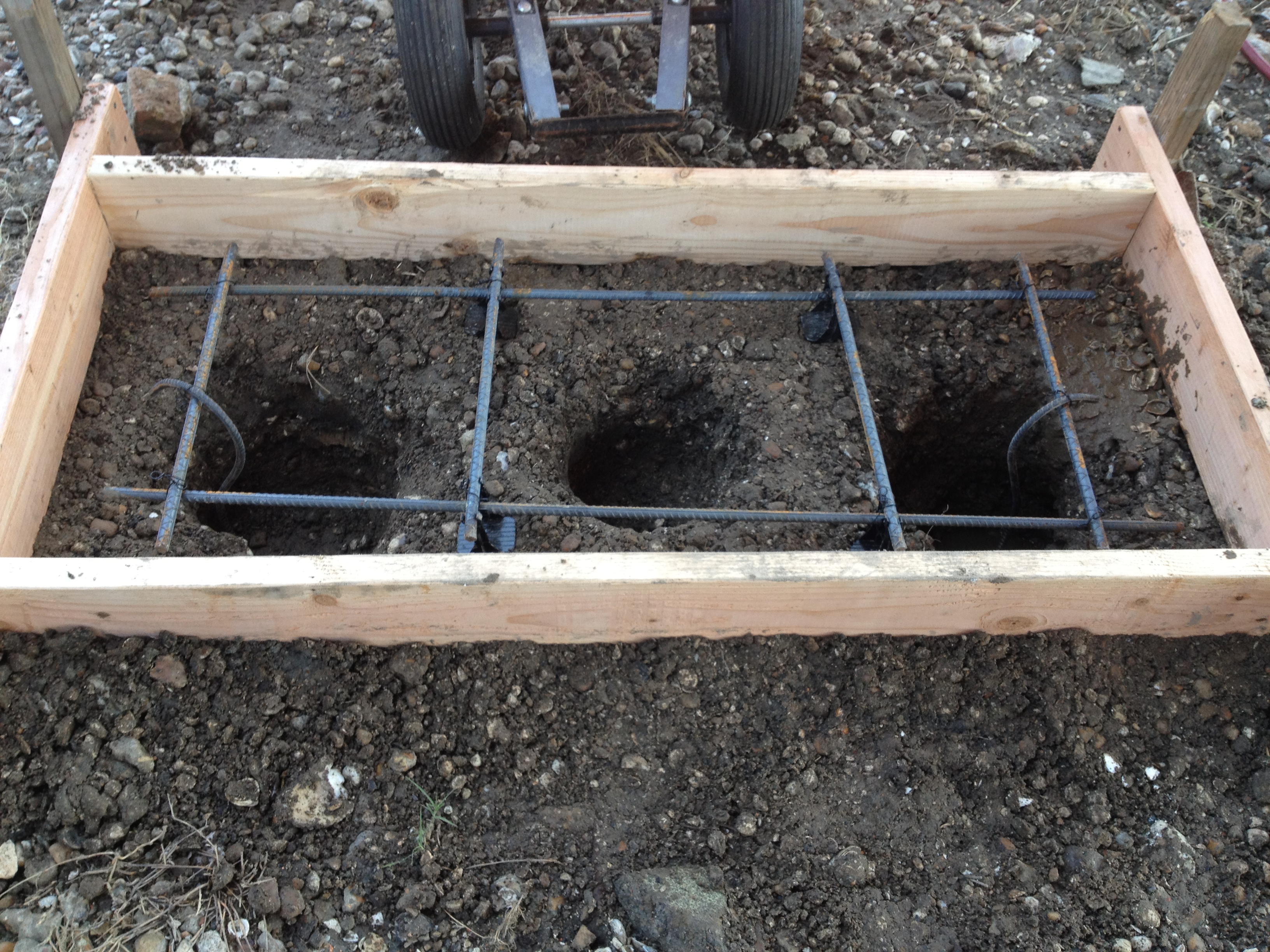

Foundation Option
Foundation Option
Elevated Living Specialist
888-990-5438
ELS LIFTS 888-990-LIFT (5438)
Well Equipted to Handle
Sales - Service - Parts - Installation
Land or Water

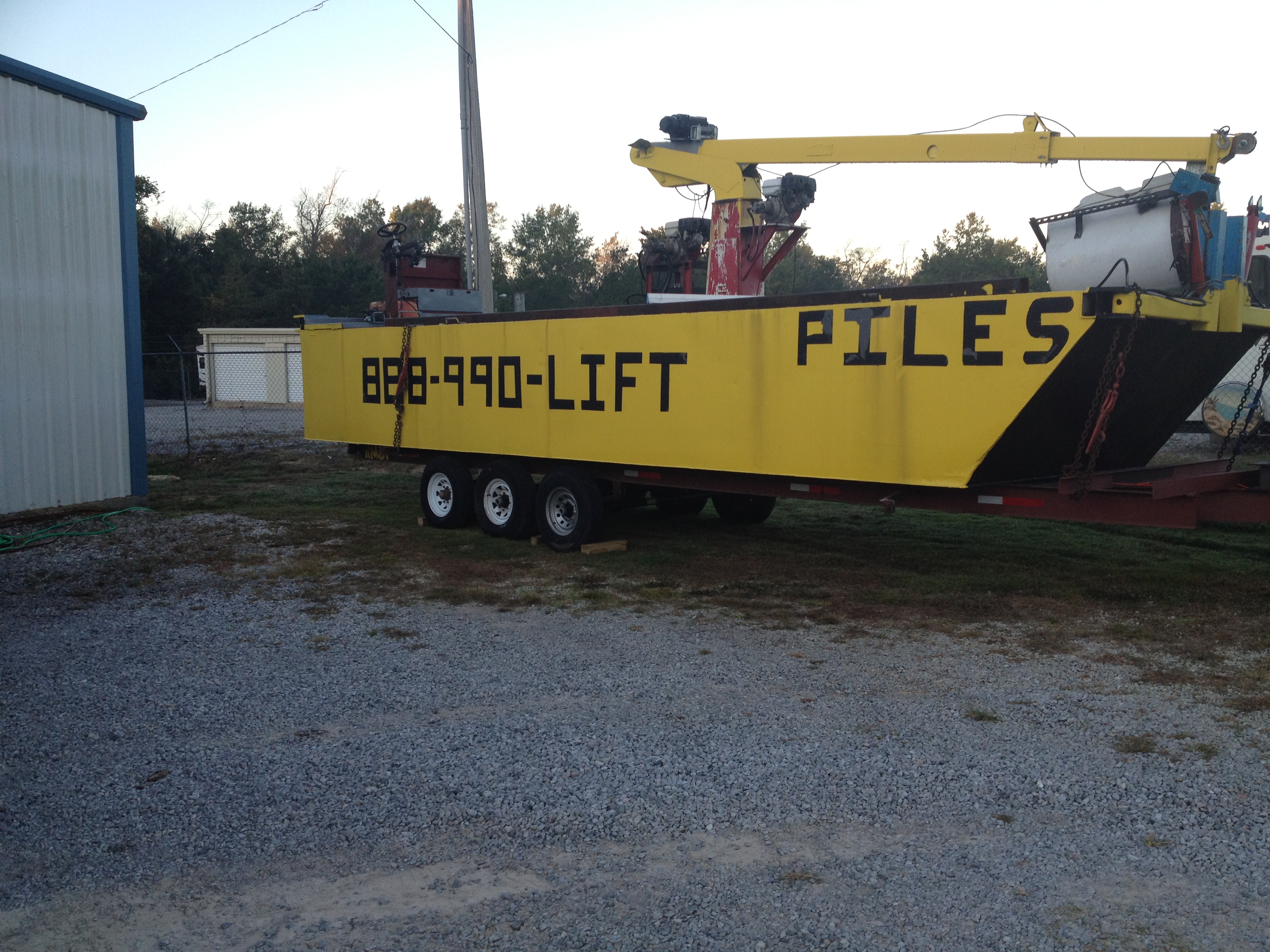

Barge

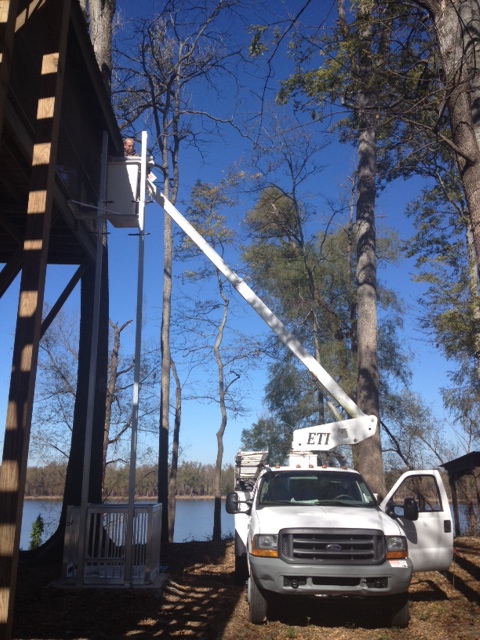

Arial Lift
Service

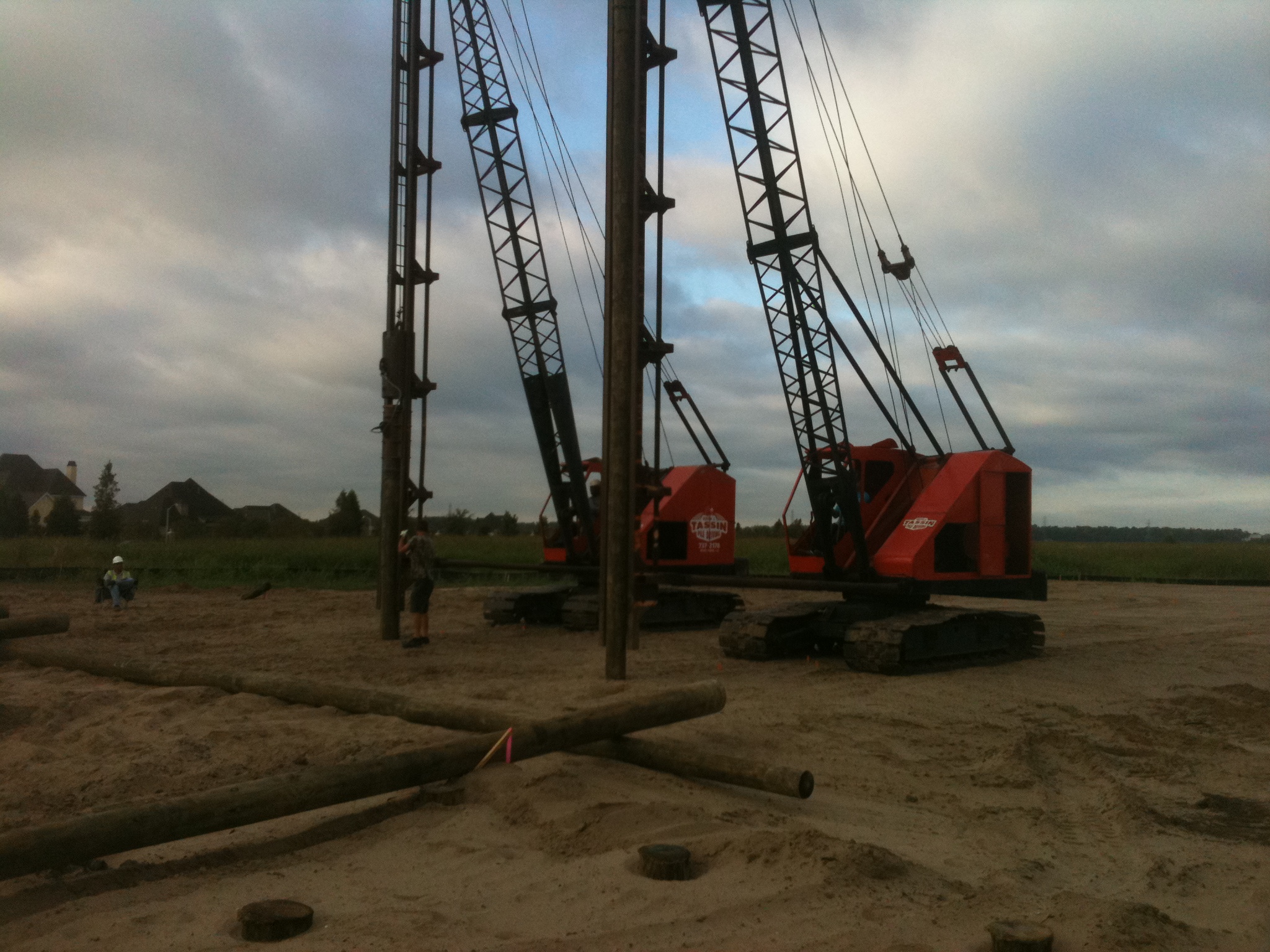

Piles
Design Built for Your Application
.ELS Vertical Platform Lift
Gulfport, MS.
Installed on a Vacation Rental providing Guest with mobility issues access to this upscale elevated vacation home.
Replacing the use of a freight elevator.

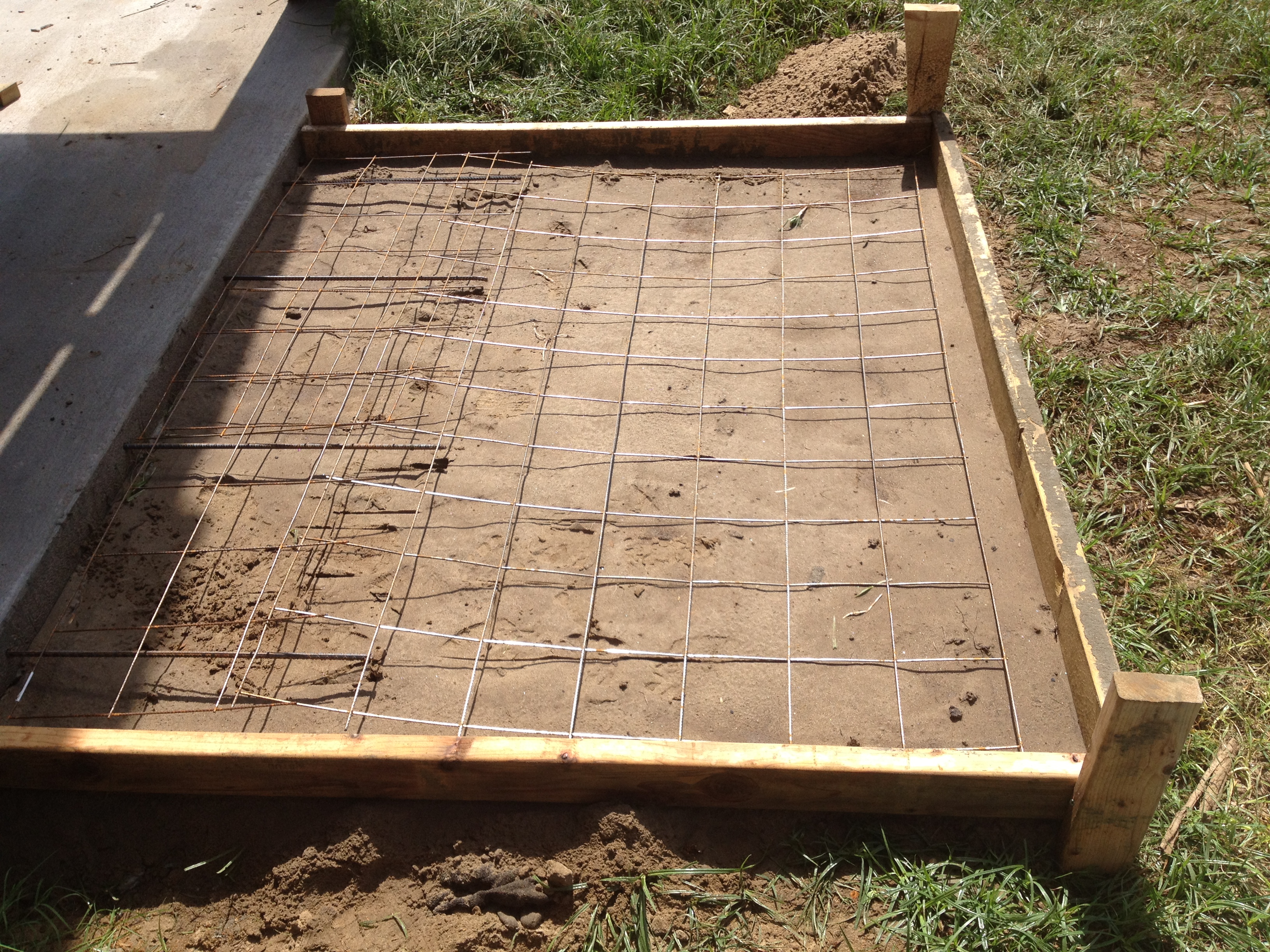

Foundation Option
Dual Brake
System
Aluminum Fascia
<Bellow
Safety Pan
Mounting   ^      Brace
Control Center >
at all Levels
Rail Gates ^
Control Center >
at all Levels
Control Center >

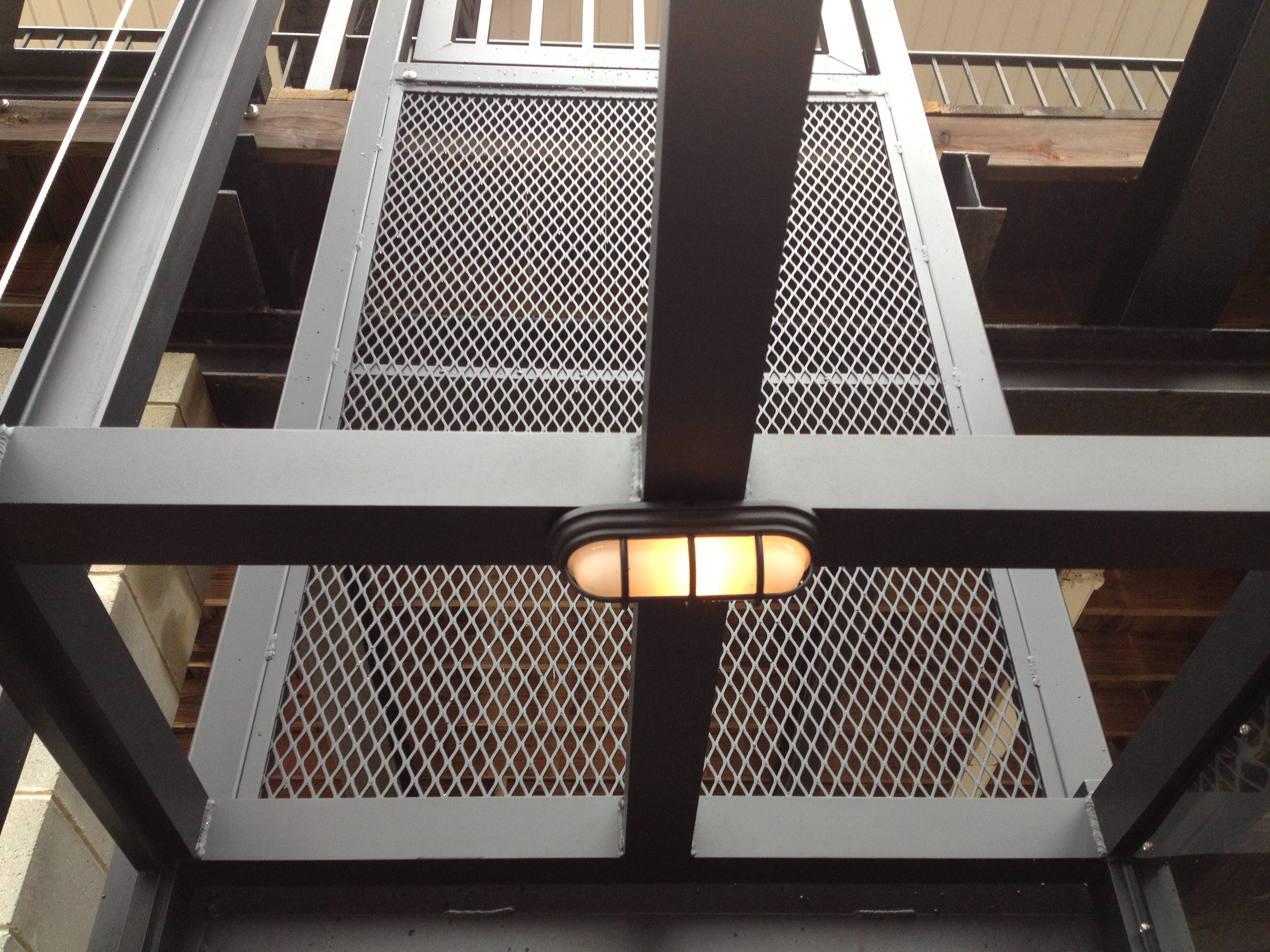

^ Lighted Cars
Lexan
Glass
Powered Coated
Many Color Choices
Stainless ^
Motor
< Reliable Quite Gear Box
Control Center >
at all Levels
Vertical Platform Lifts

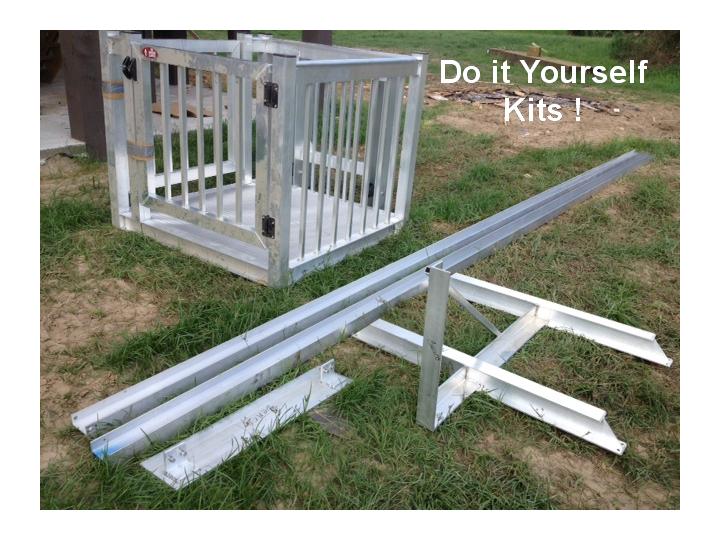

Do It Yourself
KITS
Available
We Site Measure each System
in Person (FREE)
We Site Measure each System
In Person (FREE)
We Site Measure each System In Person (FREE)
